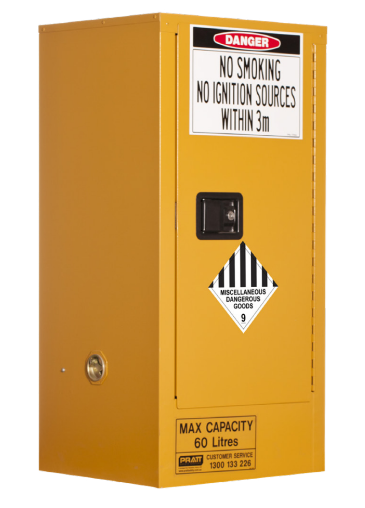

The Pratt Miscellaneous Dangerous Goods Storage Cabinet (60L, 1 Door, 2 Shelves) is purpose-built for the safe, compliant indoor storage of Class 9 (Miscellaneous) dangerous goods and articles in accordance with Australian Standards AS/NZS 4681:2000.

This heavy-duty safety cabinet provides reliable protection for hazardous materials including lithium batteries, battery-powered equipment, airbag inflators, chemical or first aid kits, solid carbon dioxide (dry ice), ammonium nitrate fertiliser, polymeric beads, and plastic moulding compounds.

Constructed from double-walled 1.2mm thick galvanised steel with thermal insulation, it features self-closing hydraulic doors, perforated galvanised shelves, a 150mm deep liquid-tight containment sump, and dual flame-arrested ventilation bungs. Finished in a high-visibility, solvent-resistant yellow baked powder coat for maximum durability in harsh commercial and industrial environments.

Standard Manufacturer Warranty by Pratt Safety Systems

  • Complies with Australian Standards AS/NZS 4681:2000 "The storage and handling of Class 9 (miscellaneous) dangerous goods and articles"
  • Suitable for Class 9 goods: lithium batteries, battery equipment, dry ice, fertiliser, chemical kits, and plastic moulding compounds
  • Robust double-walled 1.2mm thick galvanised steel construction with thermal barrier air space
  • Self-closing door fitted with speed-adjustable hydraulic closure mechanism

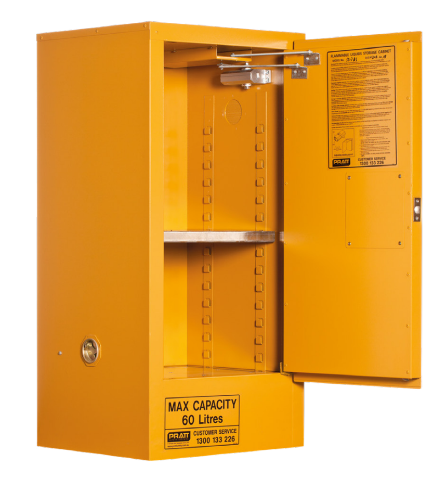

  • Includes 2 x 1.6mm thick perforated galvanised steel shelves (including base level) adjustable at 45mm increments
  • Continuous heavy-duty stainless steel piano hinge for smooth operation and longevity
  • Overlapping door edging engineered to prevent external heat and flame ingress
  • Secure 3-point self-latching mechanism with recessed keyed-alike lock (includes 2 keys)
  • Dual 50mm vent bungs with steel caps and built-in steel flash arresters
  • 150mm deep liquid-tight containment sump to capture spills and leaks
  • External static earth connection point with 1 x earthing wire included
  • Durable solvent-resistant yellow baked powder-coated finish
  • Pre-applied Class 9 Diamond and hazard warning decals
  • Supplied with a set of 4 adjustable rubber feet
  • Optional extra shelf available (Part No: 5517-29S)
Product Code / Part No. 5517CL9
Brand Pratt Safety Systems
Classification Class 9 Miscellaneous Dangerous Goods & Articles
Compliance Standards AS/NZS 4681:2000
Storage Capacity 60 Litres
Doors 1 Door (Self-closing hydraulic)
Shelves 2 (Includes base level; 1.6mm perforated galvanised steel)
Shelf Adjustment 45mm increments
Sump Depth 150mm liquid-tight containment sump
Material / Thickness 1.2mm double-walled galvanised steel
External Dimensions (H x W x D) 1065 mm x 515 mm x 465 mm
Internal Dimensions (H x W x D) 820 mm x 420 mm x 370 mm
Weight 62 kg
Ventilation 2 x 50mm vent bungs with steel caps and flash arresters
Earthing External static earth connection point + earthing wire
Locking System Keyed alike recessed lock with 3-point latching (2 keys)
Finish Solvent-resistant yellow baked powder coated
Storage Can Volume Capacity 2L Winchester: 12 (6/shelf) | 4L Winchester: 8 (4/shelf) | 4L Paint Can: 8 (4/shelf) | 20L Round Can: 2 (1/shelf)
Optional Extra Shelf Part No. 5517-29S
SKU 5517CL9
Model # 5517CL9
Brand Pratt
Shipping Weight 62.0000kg
Shipping Width 51.500m
Shipping Height 106.500m
Shipping Length 46.500m
Unit Of Measure Each
Assembled Length 46.500m
Assembled Height 106.500m
Assembled Width 51.500m
